Other Commands

As well as the commands that we have used to read the temperature the DS18B20 supports a range of other commands.

There are two command concerned with when there are more devices on the bus - Search ROM 0xF0 is used to scan the bus to discover what devices are on the bus and Match ROM 0x55 is used to select a particular device.

You can also read the devices unique 64 bit code using the Read ROM command 0x33. This makes the slave transmit the 8 byte of data that the iButton transmits - a single byte device family code 0x28 for the DS18B20, six bytes of serial number and a single CRC byte. You can use the read iButton function in given in the previous chapter to read the serial number:

  uint8_t code[8];
  int i;
  int p = readiButton(RPI_GPIO_P1_07, code);
  if (p == 1) {
    for (i = 0; i < 8; i++) {
      printf("%hhX ", code[i]);
    }
    printf("\n\r");
    fflush(stdout);
  }



As well as the read scratch pad command that we used to read the temperature there is also a Write ScratchPad command 0x4E.

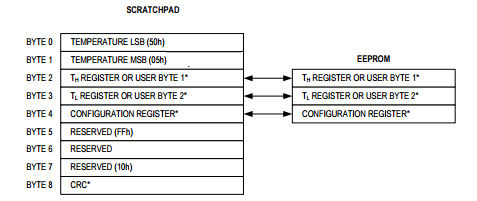

The format of the scratchpad is:



The first two bytes are the temperature that we have already used. The only writeable entries are bytes 2, 3 and 4.  The Write ScratchPad command transfers three bytes to these locations. Notice that there is no CRC and no error response if there is a transmission error. The data sheet suggests that you read the scratchpad after writing it to check that you have been successful in setting the three bytes - of course reading the scratchpad does include a CRC.

The third byte write to the scratchpad is the configuration register.



Essentially the only thing you can change is the resolution of the temperature measurement.

Configuration Register     Resolution    Time
0x1F                                    9  bits        93ms
0x3F                                   10 bits       175ms
0x5F                                   11 bits       375ms
0x7F                                   12 bits       750ms

The time quoted is the maximum time for a conversion at the given precision. You can see that the only real advantage of decreasing precision is to make conversion faster. The default is 0x7F and 12 bits of precision.

The first two bytes of the write scratchpad set a high and low temperature alarm. This is not a much used feature but you can set two temperatures that will trigger the device into alarm mode. Note you only set the top eight bits of the threshold temperatures. This is easy enough but the alarm status is set with every read so if the temperature goes outside of the set bounds and then back in the alarm is cleared. The second problem is that to discover which devices are in alarm mode you have to use the Alarm Search 0xEC command which works like the Search ROM command but the only devices that respond are the ones with an alarm state.

The alarm feature might be useful if you have a lot of devices and simply want to detect an out of band temperature. You could set up multiple devices with appropriate temperature limits and then simply repeatedly scan the bus for devices with alarms set.

You may notice that the scratchpad also has an EEPROM memory connected. You can transfer the three bytes of the scratchpad to the EEPROM using Copy Scratchpad 0x48 and transfer them back using the Recall EEPROM command 0xB8. You can use this to make the settings non-volatile.

Finally there is the Read Power Supply 0xB4 command. If the master then reads the bus a zero indicates that there are parasitic powered devices on the bus.

This is more or less all there is to the DS18B20 and the 1-wire bus in general if you restrict yourself to a single slave device on the bus. However if you want to have multiple slave devices you don't need any more hardware but you do need some more software - this is the subject of the next chapter.
