Example - Toggling a line

As an example consider the following C program which sets gpio-4 to output and then toggles it high and low as fast as possible:

#include <stdio.h>
#include <string.h>

int main(int argc, char** argv) {
    int gpio = 4;
    char buf[100];

    FILE* fd = fopen("/sys/class/gpio/export", "w");
    fprintf(fd, "%d", gpio);
    fclose(fd);

    sprintf(buf, "/sys/class/gpio/gpio%d/direction", gpio);
    fd = fopen(buf, "w");
    fprintf(fd, "out");
    fclose(fd);

    sprintf(buf, "/sys/class/gpio/gpio%d/value", gpio);
    fd = fopen(buf, "w");

    for (;;) {
        fd = fopen(buf, "w");
        fprintf(fd, "1");
        fclose(fd);
        fd = fopen(buf, "w");
        fprintf(fd, "0");
        fclose(fd);
    }
    return 0;
}



The program first exports gpio4 and then writes "out" to its direction folder to set the line to output. After this the value file is open for writing and "1" and "0" are written to the file repeatedly.

Notice the "clever" use of sprintf to create strings which incorporate the number of the gpio line you are using so that you can open the correct  folder.

You might be puzzled by the loop that opens the file, writes a value and then closes it. Why not just keep the file open? The reason is that the file buffer isn't flushed unless the file is closed. This is the usually way of dealing with the problem but there is a better way.

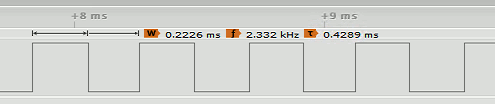

It you try this this out you will discover that the pulse train has a frequency of around 2KHz on a Pi 2/Zero and a pulse width of 200 microseconds.





This is not very fast and it is part of the reason that SYSFS has a bad reputation.

However we can do much better than this by not closing the file every time we write to it. Instead we can use fflush to flush the file buffer:

If you change the for loop to:

 for (;;) {
        fprintf(fd, "1");
        fflush(fd);
        fprintf(fd, "0");
        fflush(fd);
    }

the different is quite amazing.



Now the frequency is 100kHz and the pulse width is 5 microseconds which is still about 10 time slower than using the library and direct memory access.

The point is that opening and closing files is expensive but reading and writing isn't. If you are using SYSFS then it is worth keeping files open which is not what most of the example SYSFS programs do. They tend to provide a function that writes to the GPIO line by first opening the file, writing to it and then closing it. Of course when you use a function to write to the GPIO line you generally don't notice the repeated opening and closing of the file.

It is tempting to try to write a general purpose SYSFS GPIO access library but in practice it is quite difficult to organize things so that files are opened and closed at reasonable times without making the whole thing inefficient. You can either opt to keep track of what files are open and hence avoid reopening them or you can test to see it files are open before working with them. The first is efficient and complicated the second is slow but simple.



A Simple Fast SYSFS System

It is possible to create a simple fast SYSFS GPIO system. All you have to do is abandon the need to follow the underlying structure - don't create an export, direction, value file handling functions but concentrate on the GPIO lines. All you really need is an openGPIO function that gets a single GPIO line ready for use either as an input or an output. The trick to keeping things fast is to open the value file and keep it open until another call to openGPIO causes it to change direction.

To do this for all the GPIO lines we need to keep track of the files that are open using an array of file descriptors:

FILE fd[32] = {};

Now we have one file descriptor per GPIO line. The open function only needs the gpio number and the direction we want to open it in:

int openGPIO(int gpio, int direction) {
    if (gpio < 0 || gpio > 31) return -1;
    if (direction < 0 || direction > 1)return -2;

Next we have to check to see if the file descriptor is non-null. If it is the GPIO line is already in use and we have to close the file and unexport it:

   int len;
   char buf[BUFFER_MAX];

    if (fd[gpio] != NULL) {
        close(fd[gpio]);
        fd[gpio] = open("/sys/class/gpio/unexport", O_WRONLY);
        len = snprintf(buf, BUFFER_MAX, "%d", gpio);
        write(fd[gpio], buf, len);
        close(fd[gpio]);
    }

We can now export the GPIO line and set the direction specified and finally open the value file:

 fd[gpio] = open("/sys/class/gpio/export", O_WRONLY);
    len = snprintf(buf, BUFFER_MAX, "%d", gpio);
    write(fd[gpio], buf, len);
    close(fd[gpio]);

    len = snprintf(buf, BUFFER_MAX, "/sys/class/gpio/gpio%d/direction", gpio);
    fd[gpio] = open(buf, O_WRONLY);
    if (direction == 1) {
        write(fd[gpio], "out", 4);
        close(fd[gpio]);
        len = snprintf(buf, BUFFER_MAX, "/sys/class/gpio/gpio%d/value", gpio);
        fd[gpio] = open(buf, O_WRONLY);

    } else {
        write(fd[gpio], "in", 3);
        close(fd[gpio]);
        len = snprintf(buf, BUFFER_MAX, "/sys/class/gpio/gpio%d/value", gpio);
        fd[gpio] = open(buf, O_RDONLY);
    }
    return 0;
}

Notice that if you are planning to use this in production you need to add error handling to the file opens and writes.

At the end of the openGPIO function the line's file descriptor is set to the value file ready to read or write so a write function is simply:

int writeGPIO(int gpio, int b) {
    if (b == 0) {
        write(fd[gpio], "0", 1);
    } else {
        write(fd[gpio], "1", 1);
    }

    lseek(fd[gpio], 0, SEEK_SET);
    return 0;
}

Notice that there are no error checks in this function to keep it fast. It is up to the user to make sure that the GPIO line has been opened and in the correct direction.  If you want to add checks they are easy enough but they do slow things down.

Using a main program something like:

#include <stdio.h>
#include <string.h>
#include <fcntl.h>
#include <unistd.h>


#define BUFFER_MAX 50
FILE *fd[32] = {};

int openGPIO(int pin, int direction);
int writeGPIO(int gpio, char value);

int main(int argc, char** argv) {
    openGPIO(4, 1);
    for (;;) {
        writeGPIO(4, 1);
        writeGPIO(4, 0);
    }
    return 0;
}

The speed is almost the same as the raw write loop - 3.5 microsecond pulses.

A read function is just as easy and simple:

int readGPIO(int gpio) {
    char value_str[3];
    int c = read(fd[gpio], value_str, 3);
    lseek(fd[gpio], 0, SEEK_SET);

    if (value_str[0] == '0') {
        return 0;
    } else {
        return 1;
    }

}

This function is used in the next chapter so look there for an example.

Conclusion

So is SYSFS worth using?

From C probably not for general use. You have all the GPIO control you need using the bcm library. What is more there are missing features from the SYSFS facilities. For example there seems to be no way to control the pin modes - pull up etc. and no way to select drive strength.

However it is worth noting that SYSFS isn't as slow as it is usually painted and it can be useful in languages that don't have direct access to the GPIO registers.

Finally there is one important area where SYSFS does become important even if you are working with C. Linux does not support interrupts in user mode - only in kernel mode. What this means is that you cannot work with GPIO interrupts using C. However there is a mechanism in Linux for allowing user mode programs to react to file events and this can be used to implement a sort of GPIO interrupt facility. More of this in the next chapter.
