The Maxim 1-Wire bus is a proprietary bus that is very easy to use and has a lot of useful devices you can connect to it including the iButton security devices.  However, probably the most popular of all 1-wire devices is the DS18B20 temperature sensor - it is small, very cheap and very easy to use. The next two chapters show you how to use both of these but first let's deal with the general techniques needed to work with the 1-wire bus.

There are 1-wire drivers for Linux and these are most commonly used in Python and other programs that work with the bus. However to make these work you have to install the drivers and occasionally there are compatibility problems. If you are programming in C then you have more than enough speed to write your own 1-wire protocol functions and this has the advantage of not requiring any interaction with Linux to work. You are also free to modify and extend the 1-wire functions without having to become involved in writing Linux modules.

The Hardware

One wire devices are very simple and only use a single wire to transmit data - hence the name.

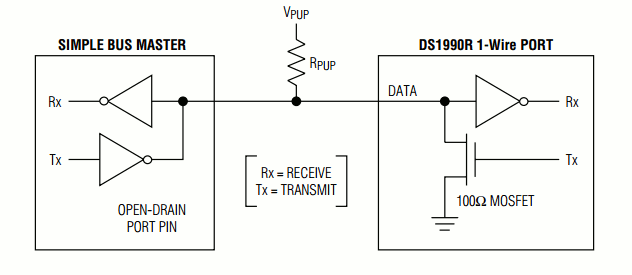

The 1-wire device can pull the bus low using its Tx line and can read the line using its Rx line. The reason for the pull up resistor is that both the bus master and the slave can pull the bus low and it will stay low until they both release the bus.

The device can even be powered from the bus line by drawing sufficient current through the pull up resistor - so called parasitic mode. Low power devices work well in parasitic mode but some devices have such a heavy current draw that the master has to provide a way to connect them to the power line - so called strong pull up. In practice parasitic mode can be difficult to make work reliably for high power devices.

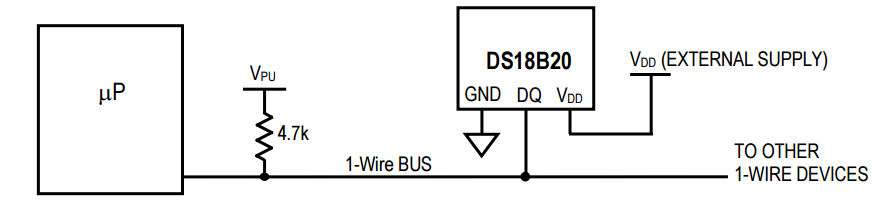

In normal powered mode there are just three connections



V power -  usually 3.3V for the Pi
Ground
and
Data

The pull up resistor varies according to the device but anything from 2.2K to 4.7K Ohms works.

There can be multiple devices on the bus and each one has a unique 64-bit lasered ROM code, which can be used as an address to select the active devices.

For simplicity, it is better to start off with a single device and avoid the problem of enumerating the devices on the bus - although once you know how everything works this isn't difficult to implement.

So to get started select a 1-wire device that you want to work with and set it up ready to talk to the Pi of your choice. In the next chapter we show how to work with an iButton and in the following chapter the DS18B20 is explained. The functions described in this chapter should work with any 1-wire device.



Initialization

Every transaction with the a 1-wire device starts with an initialization handshake.

First we have to work out how to configure the GPIO line. This example assumes that the 1-wire device is connected to pin 7. If this isn't the case change the pin enumeration to the correct pin. For a full practical example see either of the next two chapters.

You might think that we have to initialize the GPIO line so that it works in pull up mode.

This isn't necessary and the default push pull mode will do.

The reason is that in the case of the 1-wire bus the master controls when other devices send their data. Typically the master sends a pulse and then the slaves respond by pulling the line low. As long as the master doesn't drive the line during the period when the slaves are responding everything is fine.

What we do in practice is to configure the GPIO line for output only when the master needs to drive the line. Once the master is finished the GPIO line is set back to input and the pull up resistor is allowed to pull the line back up. After this any slave wanting to send data is free to pull the line low.

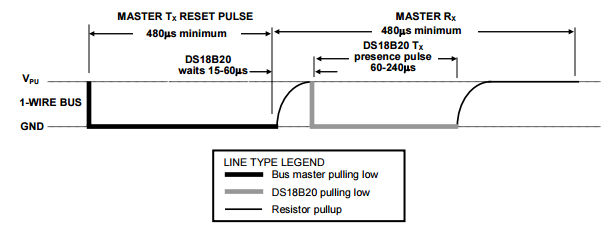

The first transaction we need is the initialization pulse.

This is simply a low pulse that lasts at least 480 microseconds, a 15 to 60 microsecond pause follows and then any and all of the devices on the bus pull the line low for 60 to 240 microseconds.



The suggested timings are:

low for 480 microseconds and read the line after 70 microsecond followed by a 410 pause.

This is fairly easy to implement as a function:

int presence(uint8_t pin) {
    bcm2835_gpio_fsel(pin, BCM2835_GPIO_FSEL_OUTP);
    bcm2835_gpio_write(pin, LOW);
    bcm2835_delayMicroseconds(480);
    bcm2835_gpio_fsel(pin, BCM2835_GPIO_FSEL_INPT);
    bcm2835_delayMicroseconds(70);
    uint8_t b = bcm2835_gpio_lev(pin);
    bcm2835_delayMicroseconds(410);
    return b;
}

We pull the line low for 480 microseconds and then let it be pulled back up by changing the line to input i.e. high impedance. After a 70  microsecond wait which is right at the start of the guaranteed period when the line should be low if there  is an active device on the bus we read the input line and then wait another 410 microseconds to complete the data slot.

The timings in this case are not critical as long as the line is read while it is held low by the slaves - which is never less than 60 microseconds and is typically as much as 100 microseconds.

The actual pulse timings with the values given are 483 microsecond reset and a total slot time of 632 microseconds.

If there is a device the function should return zero and if there are no devices it should return a one.

if(presence(RPI_GPIO_P1_07)==1){
 printf("No device \n");
}

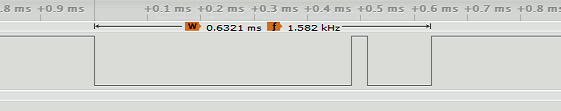

If you try this partial program and have a logic analyzer with a 1-wire protocol analyzer you will see something like:





Seeing a presence pulse is the simplest and quickest way to be sure that your hardware is working.
