GPIO Input

GPIO input is be a much more difficult problem than output from the point of view of measurement and verification. At least for output you can see the change in the signal on a logic analyzer and know the exact time that it occurred. This makes if possible to track down timing problems and fine tune things with good accuracy.

Input on the other hand is "silent" and unobservable. When did you read in the status of the line? Usually the timing of the read is with respect to some other action that the device has taken. For example, read the input line 20 microseconds after setting the output line high.

The usual rule of thumb is to assume that it takes as long to read a GPIO line as it does to set it. This means we can use the delay mechanisms that we looked at with output in mind for input.

One common and very useful trick when you are trying to get the timing of input correct is to substitute and output command to a spare GPIO line and monitor it with a logic analyzer. Place the output instruction just before the input instruction and where you see the line change on the logic analyzer should be close to the time that the input would be read in the unmodified program. You can use this to debug and fine tune and then remove the output statement.

In some applications the times are long and/or unimportant but in some they are critical.

The Basic Input Functions

We have already met the function that sets a GPIO line to input or output:

void bcm2835_gpio_fsel(uint8_t pin,uint8_t mode)

To set the GPIO line of your choice to input simply use BCM2835_GPIO_FSEL_INPT for  the mode.

Once set to input the GPIO line is high impedance, it wont take very much current no matter what you connect it to, and you can read its input state using:

uint8_t bcm2835_gpio_lev(uint8_t pin)

This is all there is to using GPIO line as an input - apart from the details of the electronics and the small matter of interrupts.

Basic Input Circuit - The Switch

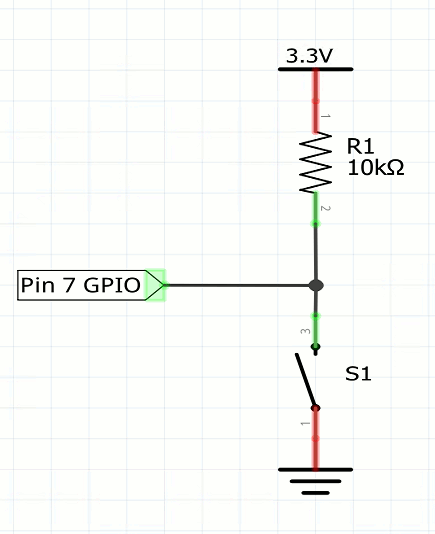

One of the most common input circuits is the switch or button.  If you want another external button you can use any GPIO line and the following circuit:

The 10K resistor isn't critical in value. It simply pulls the GPIO line high when the switch isn't pressed. When it is pressed a current of a little more than 0.3mA flows in the resistor. If this is too much increase the resistance to 100K or even more - but notice that the higher the resistor value the noisier the input to the GPIO and the more it is susceptible to RF interference.

If you want a switch that pulls the line high instead of low, to reverse the logic just swap the positions of the resistor and the switch in the diagram.

Although the switch is the simplest input device it is also very difficult to get right. When a user clicks a switch of any sort the action isn't clean - the switch bounces. What this means is that the logic level on the GPIO line goes high then low and high and bounces between the two until it settles down. There are electronic ways of debouncing switches but software does the job much better. All you have to do is but a delay of a millisecond or so after detecting a switch press and read the line again - if it is still low then record a switch press. Similarly when the switch is released read the state twice with a delay. You can vary the delay to modify the perceived characteristics of the switch.

A more sophisticated algorithm is based on the idea of integration to debounce a switch. All you have to do is read the state multiple times, every few milliseconds say. and keep a running sum of values. If say you read the switch 10 times then a running sum of 6 to 10 can be taken as an indication that the switch is high and less than this that the switch is low.

The Potential Divider

If you have an input that is outside of the range of 0 to 3.3V then you can reduce it using a simple potential divider.

 V is the input from the external logic and Vout it the connection to the GPIO input line:

voltageDiv



You can spend a lot of time on working out good values of R1 and R2. For loads that take a lot of current you need R1+R2 to be small and divided in the same ratio as the voltages.

For example for a 5V device R1=18K and R2=33K work well to drop the voltage to 3.3V.

The problem with a resistive divider is that it can round off fast pulses due to the small capacitive effects. This usually isn't a problem, but if it is then the solution is to use an FET buffer again.

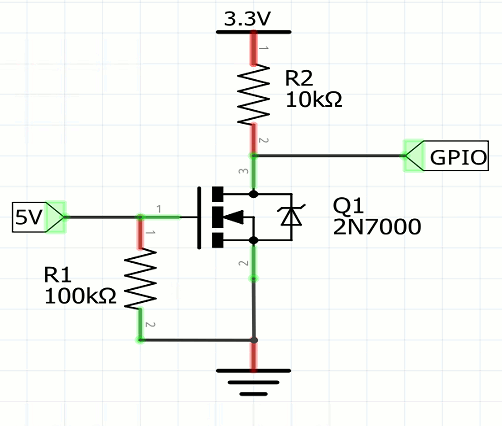

hilodrive

Notice that this is an inverting buffer but you can usually ignore this and simply correct in software i.e. read a 1 as a low and a 0 as a high state. The role of R1 is to make sure the FET is off when the 5V signal is absent and R2 limits the current in the FET to about 0.3mA.

In most case you should try the simple voltage divider and only move to an active buffer if it doesn't work.
