Accessing the hardware directly isn't something that everyone wants or needs to do but knowing how it all works gives you a different perspective. It means you can think about what you are doing, even if is only using the BCM2835 library in a broader and deeper way. In this chapter we look in more detail at the GPIO, its hardware and how it is controlled by the software. In particular we look as the ingenious method that Linux uses to allow you to access peripherals or any memory you want  to. This is useful in a wider context because you can use the same techniques to map any file into memory. The same techniques can be used to work with other hardware in the bcm2835 that perhaps the library doesn't cater for.

All of the peripherals that are directly connected to the processor are memory mapped. What this means is that there are a set of addresses that correspond to "registers" that control and give the devices status. Using these is just a matter of knowing what addresses to use and what the format of the registers is and how to directly use memory under Linux.

Easy to say - slightly more difficult to get right.

However after you have got it right you can't understand what the fuss was about.

The best way to understand how all of this works is to find out about a particular peripheral - the GPIO.

The GPIO Registers

If you look at the manual for the BCM2835 processor you will find a long section on the registers that are connected to the GPIO lines. This looks very complicated but in fact it comes down to a very simple pattern.

There are 54 GPIO lines arranged as two banks not all usable on the Pi.

For each GPIO line there is a three bit configuration code that sets it to input or output or one of the alternate functions:.

000 = GPIO Pin is an input
001 = GPIO Pin is an output
100 = GPIO Pin takes alternate function 0
101 = GPIO Pin takes alternate function 1
110 = GPIO Pin takes alternate function 2
111 = GPIO Pin takes alternate function 3
011 = GPIO Pin takes alternate function 4
010 = GPIO Pin takes alternate function 5

These three bits are packed into five 32 bit function select or configuration registers. The first function select register holds the configuration bits for GPIO 0 to 9 i.e. 10 GPIO lines with GPIO 0 as the first three low order bits and GPIO 9 as the bits 27, 28 and 29. Bits 30 and 31 are unused in each of the registers.

The first register is:



Basically the three configuration bits are packed into the 32 bit registers as best they can be. This arrangement continues for the next four registers, which control ten GPIO lines each, but the fifth register only holds the configuration bits for GPIO 50 to 53 and bits 12 to 31 are unused.

Packing 54 GPIO lines into multiples of 32 bits is always going to leave some bits over.

Once the GPIO lines are configured into either input or output you can use the set and clear registers to set them high or low and the Level registers to read the state of inputs.

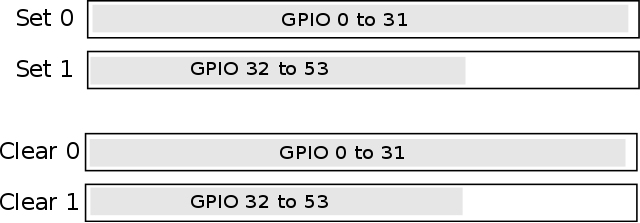

There are two Set and two Clear registers.

The first register of each pair controls GPIO lines 0 to 31 and the second pair controls GPIO lines 32 to 53. One bit is assigned per line and the second register of each pair has bits 22 to 31 unused. That is bit zero in Set 0 or Clear 0 controls GPIO 0 etc.



If you write to either register then the lines that correspond to one bits are set or cleared according to which register you write to. There is no simple Out register that you can write to simultaneously set and clear bits. The reason is that you can use Set and Clear to set or clear any GPIO lines without changing the state of the others.

For example suppose you want to set GPIO 0 to a one then you would write 0x01 to the Set 0 register. In this case the zero bits have no effect. A general Out register would also set all of the other lines it controlled to low in response to the zeros. This means controlling GPIO lines with a general Out register usually involves a read to establish the current state of all of the GPIO lines, then a logical operation to set or clear a particular line followed by a write. Having Set and Clear registers means you can set any group of lines to high or low in one write operation. However what you cannot do is set lines high and low at the same time.

To summarize the main registers controlling the GPIO lines are

FSEL0-FSEL5    configuration registers three bits
               for each GPIO line

SET0     Set any group of GPIO lines high
SET1

CLR0  Set any group of GPIO lines low
CLR1

LEV0  read the state of all GPIO lines
LEV1

There are also pairs of registers that control the event detection and interrupts which follow the description on of the functions in the interrupt section of the previous chapter.

These are:

EDS0  Event detect status
EDS1

REN0 Rising edge detect enable
REN1

FEN0 Falling edge detect enable
FEN1

HEN0 High detect enable
HEN1

LEN0 Low detect enable
LEN1

and two async version of the edge detection enables:

AREN0 async rising edge detect enable
AREN1

AFEN0 async falling edge detect enable
AFEN1

There are also three registers that let you set the pullup/pulldown behavior of any GPIO line:

UD      Pull up/down enable
UDCLK0  Enable clock
UDCLK1

You will notice that unlike the other enable registers there is only a single 32 bit Pull up/down register to control 53 GPIO lines. In fact only the first two low bits control anything.

b1 b0
 0   0   push pull
 0   1   pull down
 1   0   pull up
 1   1   reserved

To set which GPIO line the new state refers to you have to use the UDCKL pair of registers. The procedure is surprisingly complicated.

  1.  set the state required in the UD register
  2. wait 150 clock cycles for the hardware to settle
  3. write a 1 to each bit position in UDCKL0/1 to determine which GPIO lines the new state will apply to.
  4. wait 150 clock cycles for the hardware to settle
  5. write all zeros to UD and UDCKL0/1 to clear the set state

The bcm2835 library provides functions that expose this clocking procedure and a function that hides it from you. The

bcm2835_gpio_set_pud (uint8_t pin, uint8_t pud)

function simply sets the pin you select to the specified pullup/down.

There is one more set of registers to consider that it not listed in the standard documentation for reasons that are not clear. There are three PAD registers that set the fine details of the GPIO drive. You can consider the PAD registers as additional to the PUD registers. The three registers control groups of GPIO lines:

PAD0 GPIO 0 -27
PAD1 GPIO 28-45
PAD2 GPIO 46-53

The configuration is set in bits 0 to 5:

bits 2,1 0   Drive Strength
000            = 2mA
001            =4mA
n                =(n+1)*2mA

bit 3 controls hysteresis 0 = disabled 1= enabled

bit 4 controls slew rater 0=slew rate limited 1 = slew rate not limited.

The top 8 bits of the PAD registers has to be set to 0x5A to allow the PAD register to be written to. This is misleadingly called a PASSWRD.

There isn't much documentation on hysteresis and slew rate but broadly speaking hysteresis makes the input a schmitt trigger and slew rate puts a small capacitive load on the input.

The Drive Strength setting deserves explanation. This isn't the amount of current that the pin can supply. It is the effective output resistance. Each time the drive current is increased by 2mA another transistor is used in the drive so lowering the output resistance. This has the effect of increasing or decreasing the voltage.

This is a subtle idea and related to how much current is needed to make the output 3.3V or 0V. For example, if you have a 2mA drive current then a load that draws 2mA will have a voltage across it within the tolerance for 3.3V logic. If the load draws more than 2mA then the output voltages will not be high and low enough to meet the tolerances 0.8V for zero and 1.3V for one.

The drive current is not a maximum current that can be supplied and it is certainly not a current limiting value.

If you short an output to 0V or 3.3V then it will supply as much current as it can before overheating and failing.

The power up defaults for PAD registers are Slew rate unlimited, hysteresis enabled and drive 8mA.
