The I2C bus is a serial bus that can be used to connect multiple devices to a controller. It is a simple bus that uses two active wires - one for data and one for a clock. Despite there being lots of problems in using the I2C bus because it isn't well standardized and devices can conflict and generally do things in there own way it is still commonly used and too useful to ignore.

The big problem in getting started with the I2C bus is that you will find it described at many different levels of detail - from physical bus characteristics, the protocol, the details of individual devices. It can be difficult to relate all of this together and produce a working anything.

In fact you only need to know the general workings of the I2C bus, some general features of the protocol and know the addresses and commands used by any particular device.

To explain and illustrate these idea we really do have to work with a particular device to make things concrete. However the basic stages of getting things to work - the steps, the testing and verification - are more or less the same irrespective of the device.

I2C Hardware Basics

The I2C bus is very simple.

Just two signal lines SDA and SCL the data and clock lines respectively.

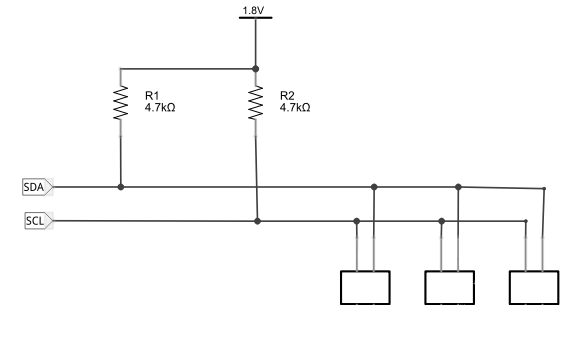

Each signal line is pulled up by a suitable resistor to the supply line at what ever voltage the devices are working at 3.3V and 5V are common choices, The size of the pullup resistors isn't critical, but 4.7K is typical as shown.

You simply connect the SDA and SCL pins of each of the devices to the pull up resistors. Of course if any of the devices have built-in pullup resistors you can omit the external resistors. More of a problem is if multiple devices each have pull ups. In this case you need to disable all but one set.

The I2C bus is an open collector bus.

This means that it is actively pulled down by a transistor set to on. When the transistor is off, however, the bus returns to the high voltage state via the pullup resistor. The advantage of this approach is that multiple devices can pull the bus low at the same time. That is an open collector bus is low when one or more devices pulls it low and high when none of the devices is active.

The SCL line provides a clock which is used to set the speed of data transfer - one data bit is presented on the SDA line for each pulse on the SCL line. In all cases the master drives the clock line to control how fast bits are transferred. The slave can however hold the clock line low if it needs to slow down the data transfer.

In most cases the I2C bus has a single master device - the Pi in our case - which drives the clock and invites the slaves to receive or transmit data. Multiple masters are possible, but this is advanced and not often necessary.

At this point we could go into the details of how all of this works in terms of bits. However, the library handles these details for us. All you really need to know is that all communication occurs in 8-bit packets.

The master sends a packet, an address frame, which contains the address of the slave it wants to interact with. Every slave has to have a unique address - usually 7 bits but it can be 11 bits and the Pi does support this.

One of the problems in using the I2C bus is that manufacturers often use the same address or same set of selectable addresses and this can make using particular combinations of devices on the same bus difficult or impossible.

The 7-bit address is set as the high order 7 bits in the byte and this can be confusing as an address that is stated as 0x40 in the data sheet results in 0x80 being sent to the device. The low order bit of the address signals a write or a read operation depending on whether it is a zero or a one respectively.

After sending an address frame it then sends or receives data frames back from the slave, There are also special signals used to mark the start and end of an exchange of packets but the library functions take care of these.

This is really all you need to know about I2C in general to get started but it is worth finding out more of the details as you need them - you almost certainly will need them as you debug I2C programs.

The Pi I2C

The processor has three built in I2C masters.

They are referred to as BSC controllers but BSC - Broadcom Serial Controller is essentially an implementation of the I2C bus and you generally don't have to worry about incompatibilities.

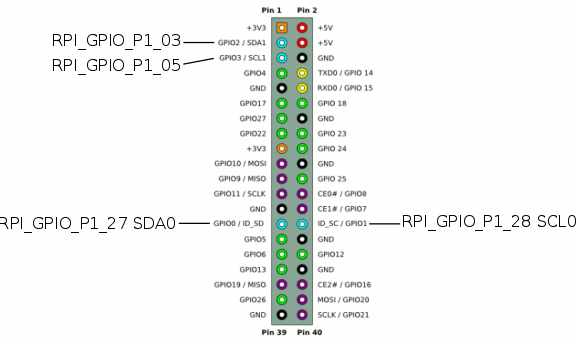

Of the three controllers one, BSC2, is dedicated to working with the HDMI interface. Of the two remaining I2C buses BSC1 is brought out on the main connector at pin 3 GPIO2/SDA1 and pin 5 GPIO3/SCL1 and BSC0 is brought out on pin 27 GPIO0/SDA0 and pin 28 GPIO1/SCL0.

There are 1.6K pull-up resistors on BSC1 and BSC0 is used for expansion card identification and you best not using it. On older versions of the Pi BSC0 was brought out on P5 which wasn't fitted - and is best ignored.

The bcm2835 library only supports BSC1 but it isn't difficult to extend it to support BSC0 if required.

To summarize:

There is one easy to use I2C bus available on pins 3 and 5 complete with 1.6K pullup resistors.

There is an additional I2C bus on pins 27 and 28 but it is allocated to expansion EPROM use and best avoided if possible. There are no pullup resistors fitted.

The bcm2835 only supports the bus on pins 3 and 5.

The hardware can work at 100kHz up to 250MHz and while it supports clock stretching you have to know how to make it work - see later.
