A basic iButton is small can that can be placed into a simple contact reader.



Often the button is placed in a fob that makes it possible to keep on a key ring:

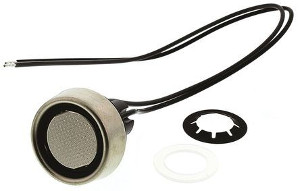

A typical reader is just a two contact receptacle:



iButtons are cheap and robust and they are easy to use - as long as you have some 1-wire software.

You can get very simple iButtons that store a unique serial number for a few dollars. These are suitable for security applications. You could design a reader to open a door, arm an alarm or record comings and goings. The main advantage of iButtons over swipe cards and similar id devices is that they are almost indestructible. The small stainless steel can is tough and water proof.

There are also most sophisticated iButtons that come with sensors and data loggers. These are slightly more expensive and slightly more difficult to read but after you have seen how to work with the basic security button there should be no problem in extending the software.

The Hardware

A typical iButton is used in parasitic mode meaning it derives its operating power from the data line. A typical iButton has such a low current drain that you don't need to do anything to make it work property.

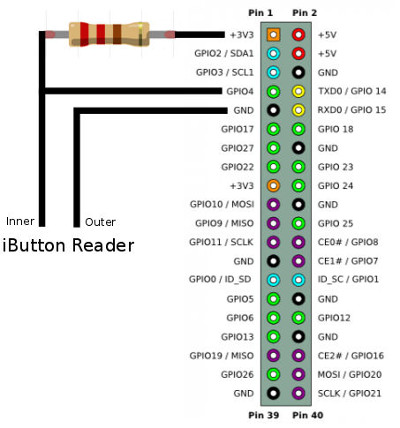

All that is needed is a pullup resistor, typically 2.2KOhms, a 3.3V supply, ground and a GPIO line pin 7 in this example but it could be any other you care to use.

The circuit is almost trivial - no it really couldn't be simpler:

You can realize this an many ways. A prototype board allows you to check that things are working with a logic analyzer but you can wire it directly to the Pi's connector.



Is There a Button?

The first thing you want to try with any 1-wire device is to discover if the bus is working and to do this you send an initialization pulse. We created a function to do just this in the previous chapter so we can just use it.

However iButtons have a particular problem. You want to detect when an iButton is pressed into the reader so you need a loop something like:

  uint8_t b = 1;
  for (;;) {
    b = presence(RPI_GPIO_P1_07);
    if (b == 0) {
      read iButton
    }
   }

Where presence is a function from the previous chapter.

In practice there is also the problem that the iButton is likely to make intermittent contact and so you have to implement error checking and some way of "debouncing" the iButton so you only read it once.

For the moment we can ignore this problem and just read the iButton.
